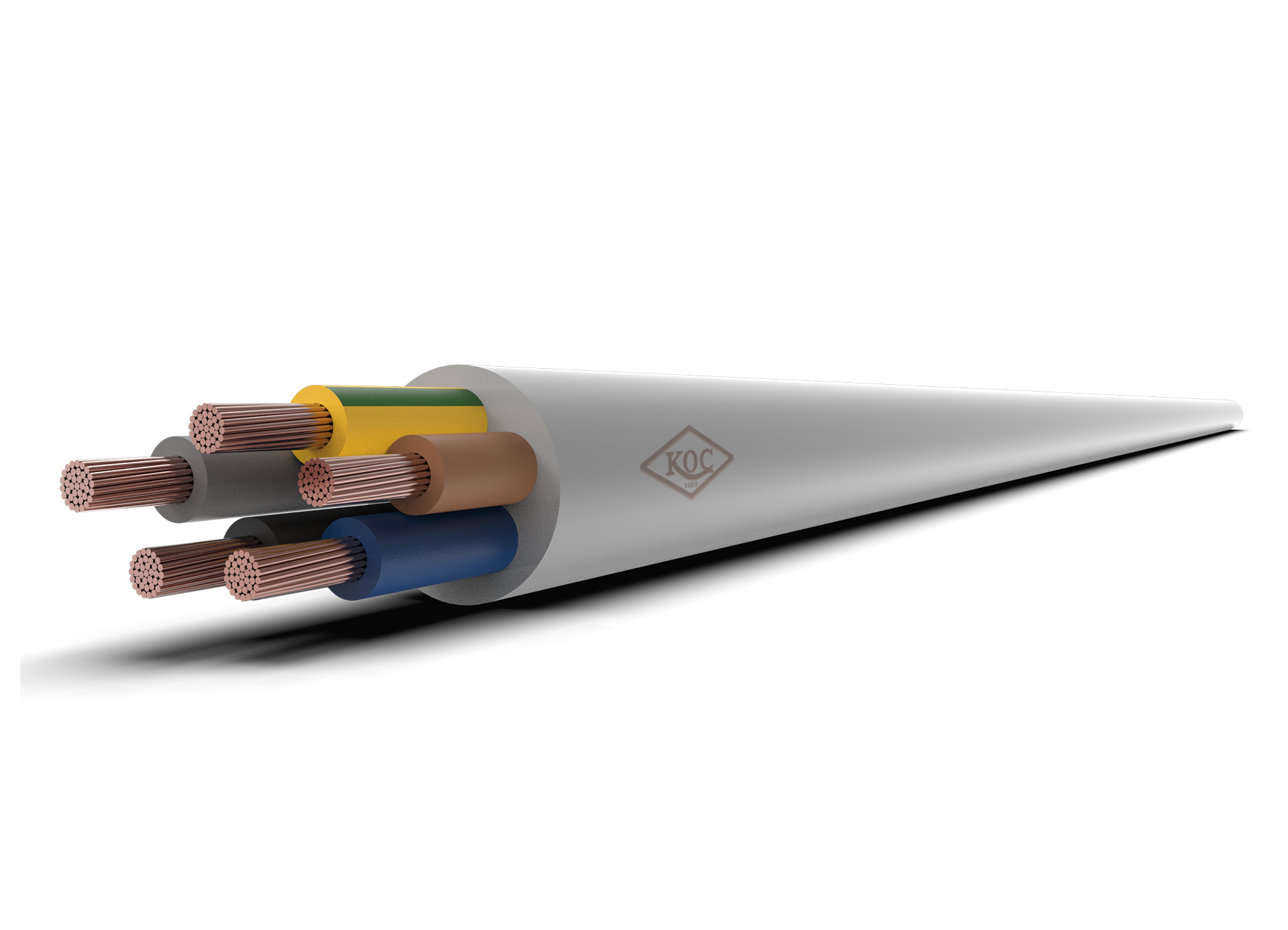

| H05VV-F | |
| STANDARD: | TS EN 50525-2-11, VDE 0281, IEC 60227, BS 6500 |
| TECHNICAL DATA: | Max. Operating Temp.: 70 °C |
| Minimum Bending Radius: 6xD | |
| Max. Short Circuit Temp.: 160 °C | |
| Rated Voltage: 300/500 V | |
| CONSTRUCTION: | 1. Flexible Copper Conductor |
| 2. PVC Insulation | |
| 3. PVC Outer Sheath | |
APPLICATION
It is specifically designed for use in homes, kitchens, and offices under moderate mechanical stress. It can be used in household appliances in damp and wet areas such as refrigerators, washing machines, etc. It can be used in cooking and heating devices in situations where the cable does not come into direct contact with the hot parts of the device and is not affected by heat. These cables are suitable for fixed installation in gaps of furniture, partition walls, decorative coverings, and prefabricated building components. They are not suitable for outdoor use or in industrial and agricultural machinery.
| Nominal Cross Section (mm²) | Overall Diameter (mm) | Net Weight (kg/km) Aprox. | Standard Delivery Length (m) | Conductor DC Resistance at 20˚C (ohm/km) | Current Carrying Capacity in Conduit |
|---|---|---|---|---|---|
| 2x0,75 | 6.3 | 59 | 100 | 26 | 6 |
| 2x1 | 6.5 | 67 | 100 | 19.5 | 10 |
| 2x1,5 | 7.4 | 88 | 100 | 13.3 | 16 |
| 2x2,5 | 9.2 | 136 | 100 | 7.98 | 25 |
| 2x4 | 11 | 180 | 100 | 4.95 | 34 |
| 3G0,75 | 6.5 | 63 | 100 | 26 | 6 |
| 3G 1 | 6.8 | 74 | 100 | 19.5 | 10 |
| 3G 1,5 | 7.9 | 100 | 100 | 13.3 | 16 |
| 3G 2,5 | 9.7 | 156 | 100 | 7.98 | 25 |
| 3G 4 | 11.4 | 230 | 100 | 4.95 | 34 |
| 4x0,75 | 7.2 | 79 | 100 | 26 | 6 |
| 4x1 | 7.6 | 93 | 100 | 19.5 | 10 |
| 4x1,5 | 9.1 | 132 | 100 | 13.3 | 16 |
| 4x2,5 | 10.9 | 198 | 100 | 7.98 | 25 |
| 4x4 | 12.7 | 292 | 100 | 4.95 | 34 |
| 5G 0,75 | 8.2 | 100 | 100 | 26 | 6 |
| 5G 1 | 8.5 | 117 | 100 | 19.5 | 10 |
| 5G 1,5 | 10.1 | 164 | 100 | 13.3 | 16 |
| 5G 2,5 | 12.12 | 245 | 100 | 7.98 | 25 |
| 5G 4 | 14.1 | 336 | 100 | 4.95 | 34 |
