KOÇ KABLO SAN. TİC. A.Ş.

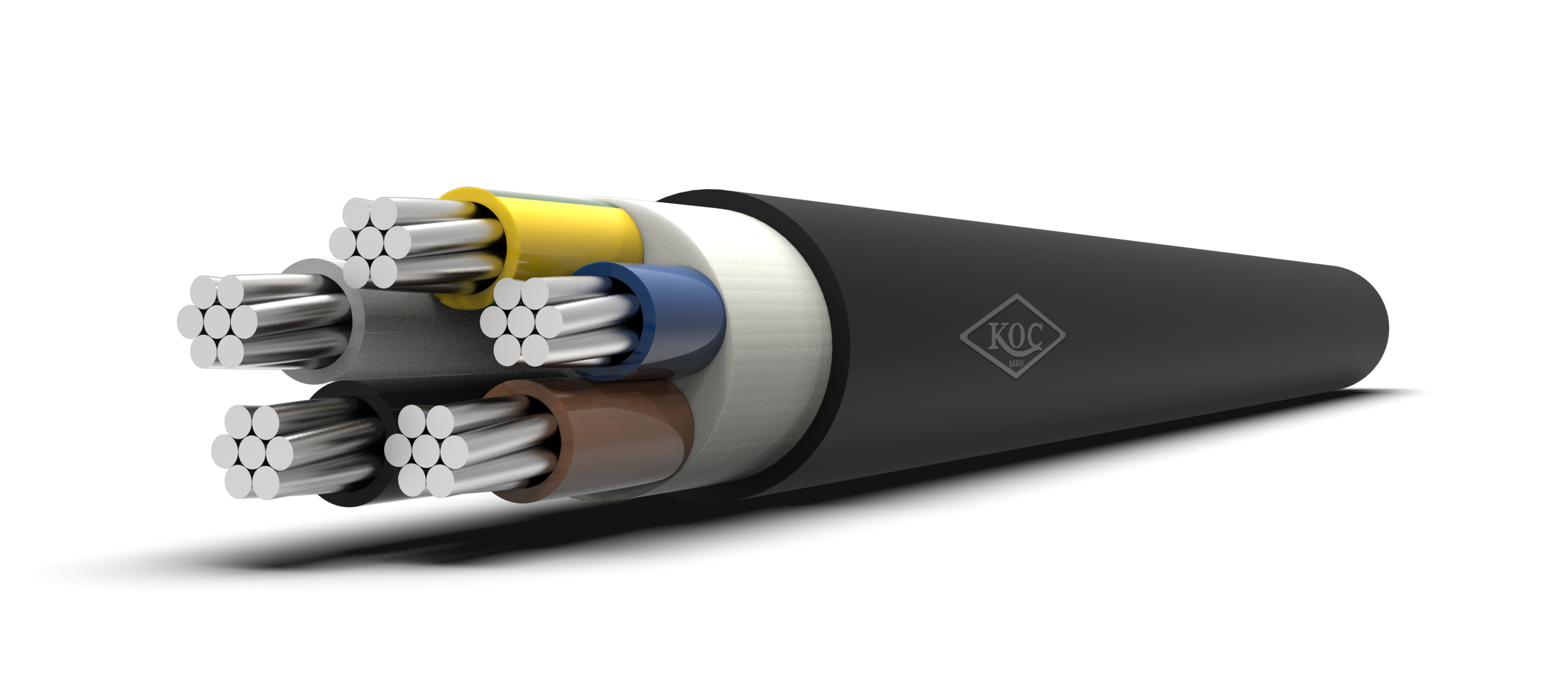

YAXV (TS), NA2XY (IEC, VDE) | |
STANDARD: | TS IEC 60502-1 , VDE 0271 |
TECHNICAL DATA: | Max. Operating Temp.: 90 °C |
Minimum Bending Radius: 15xD | |
Max. Short Circuit Temp.: 250 °C | |
Rated Voltage: 0.6/1 kV | |
Test Voltage: 3,5 kV | |
CONSTRUCTION: | 1. Stranded Aluminium Conductor |
2. XLPE Insulation | |
3. Filler | |
4. PVC Outer Sheath |
APPLICATION
With low dielectric loss properties, they are widely used in residential and industrial areas, outdoor settings, underground, cable channels, and energy facilities where sudden load changes occur. They can be safely preferred in user networks where mechanical damage is not expected, such as distribution panels. Their durability and flexible usage options provide a reliable and long-lasting solution in line with the requirements of modern energy infrastructure.
NA2XY (YA2XV) by kockablo on Sketchfab
Nominal Cross Section (mm²) | Overall Diameter (mm) | Net Weight (kg/km) Aprox. | Standard Delivery Length (m) | Conductor DC Resistance at 20˚C (ohm/km) | Current Carrying Capacity in Conduit | Current Carrying Capacity in Air |
---|---|---|---|---|---|---|
1x25 | 15.5 | 153 | 1000 | 1.2 | 73 - 62 | 89 - 78 |
1x35 | 17.5 | 195 | 1000 | 0.868 | 90 - 77 | 111 - 96 |
1x50 | 19.5 | 250 | 1000 | 0.641 | 125 - 110 | 133 - 128 |
1x70 | 21 | 325 | 1000 | 0.433 | 160 - 140 | 173 - 166 |
1x95 | 23.5 | 434 | 1000 | 0.32 | 195 - 170 | 212 - 203 |
1x120 | 25 | 521 | 1000 | 0.253 | 226 - 197 | 247 - 237 |
1x150 | 27 | 640 | 1000 | 0.206 | 261 - 227 | 287 - 274 |
1x185 | 29.5 | 785 | 1000 | 0.164 | 298 - 259 | 330 - 316 |
1x240 | 32 | 1018 | 500 | 0.125 | 352 - 305 | 392 - 375 |
1x300 | 35.5 | 1249 | 500 | 0.1 | 406 - 351 | 455 - 434 |
1x400 | 39.5 | 1663 | 500 | 0.0778 | 511 - 472 | 502 - 507 |
1x500 | 43 | 2111 | 500 | 0.0605 | 591 - 546 | 582 - 590 |
1x630 | 37.8 | 2670 | 500 | 0.0469 | 679 - 629 | 669 - 680 |
2x25 | 21 | 608 | 1000 | 1.2 | 90 | 97 |
2x35 | 23.4 | 768 | 1000 | 0.868 | 112 | 120 |
2x50 | 27 | 1016 | 1000 | 0.641 | 136 | 146 |
3x10 | 15.4 | 338 | 1000 | 3.08 | - | - |
3x16 | 17.6 | 446 | 1000 | 1.15 | 76 | 77 |
3x25 | 22.3 | 678 | 1000 | 1.2 | 90 | 97 |
3x35 | 24.9 | 864 | 500 | 0.868 | 112 | 120 |
3x50 | 28.8 | 1147 | 500 | 0.641 | 136 | 146 |
3x70 | 32.7 | 1507 | 500 | 0.443 | 174 | 187 |
3x95 | 37.3 | 1992 | 500 | 0.32 | 211 | 227 |
3x120 | 41.2 | 2398 | 500 | 0.253 | 245 | 263 |
3x150 | 46 | 2991 | 500 | 0.206 | 283 | 304 |
3x185 | 51.2 | 3688 | 500 | 0.164 | 323 | 347 |
3x240 | 58 | 4785 | 500 | 0.125 | 382 | 409 |
3x300 | 64.9 | 5944 | 500 | 0.1 | 440 | 471 |
Nominal Cross Section (mm²) | Overall Diameter (mm) | Net Weight (kg/km) Aprox. | Standard Delivery Length (m) | Conductor DC Resistance at 20˚C (ohm/km) | Current Carrying Capacity in Conduit | Current Carrying Capacity in Air |
---|---|---|---|---|---|---|
3x16+10 | 19.5 | 562 | 1000 | 1,91/3,08 | 76 | 77 |
3x25+16 | 23.9 | 785 | 1000 | 1,20/1,91 | 90 | 97 |
3x35+16 | 26.5 | 981 | 1000 | 0,868/1,91 | 112 | 120 |
3x50+25 | 31 | 1318 | 500 | 0,641/1,20 | 136 | 146 |
3x70+35 | 34.9 | 1702 | 500 | 0,443/0,868 | 174 | 187 |
3x95+50 | 39.9 | 2248 | 500 | 0,320/0,641 | 211 | 227 |
3x120+70 | 44.5 | 2774 | 500 | 0,253/0,443 | 245 | 263 |
3x150+70 | 48.7 | 3247 | 500 | 0,206/0,443 | 283 | 304 |
3x185+95 | 54.7 | 4180 | 500 | 0,164/0,320 | 323 | 347 |
3x240+120 | 61.5 | 5323 | 500 | 0,125/0,253 | 382 | 409 |
3x300+150 | 68.5 | 6626 | 500 | 0,100/0,206 | 440 | 471 |
4x25 | 24.7 | 834 | 1000 | 1.2 | 90 | 97 |
4x35 | 27.6 | 1065 | 1000 | 0.868 | 112 | 120 |
4x50 | 31.9 | 1406 | 500 | 0.641 | 136 | 146 |
4x70 | 36.4 | 1868 | 500 | 0.443 | 174 | 187 |
4x95 | 41.4 | 2457 | 500 | 0.32 | 211 | 227 |
4x120 | 45.7 | 2949 | 500 | 0.253 | 245 | 263 |
4x150 | 52 | 3810 | 500 | 0.206 | 283 | 304 |
4x185 | 57.7 | 4668 | 500 | 0.164 | 323 | 347 |
4x240 | 65.6 | 6109 | 500 | 0.125 | 382 | 409 |
4x300 | 72.9 | 7498 | 500 | 0.1 | 440 | 471 |
5x16 | 23.1 | 738 | 1000 | 1.91 | 76 | 77 |
5x25 | 26.9 | 992 | 1000 | 1.2 | 90 | 97 |
5x35 | 30.4 | 1294 | 1000 | 0.868 | 112 | 120 |
5x50 | 35.4 | 1734 | 1000 | 0.641 | 136 | 146 |
5x70 | 40.3 | 2289 | 1000 | 0.443 | 174 | 187 |
5x95 | 46.5 | 3097 | 1000 | 0.32 | 211 | 227 |
