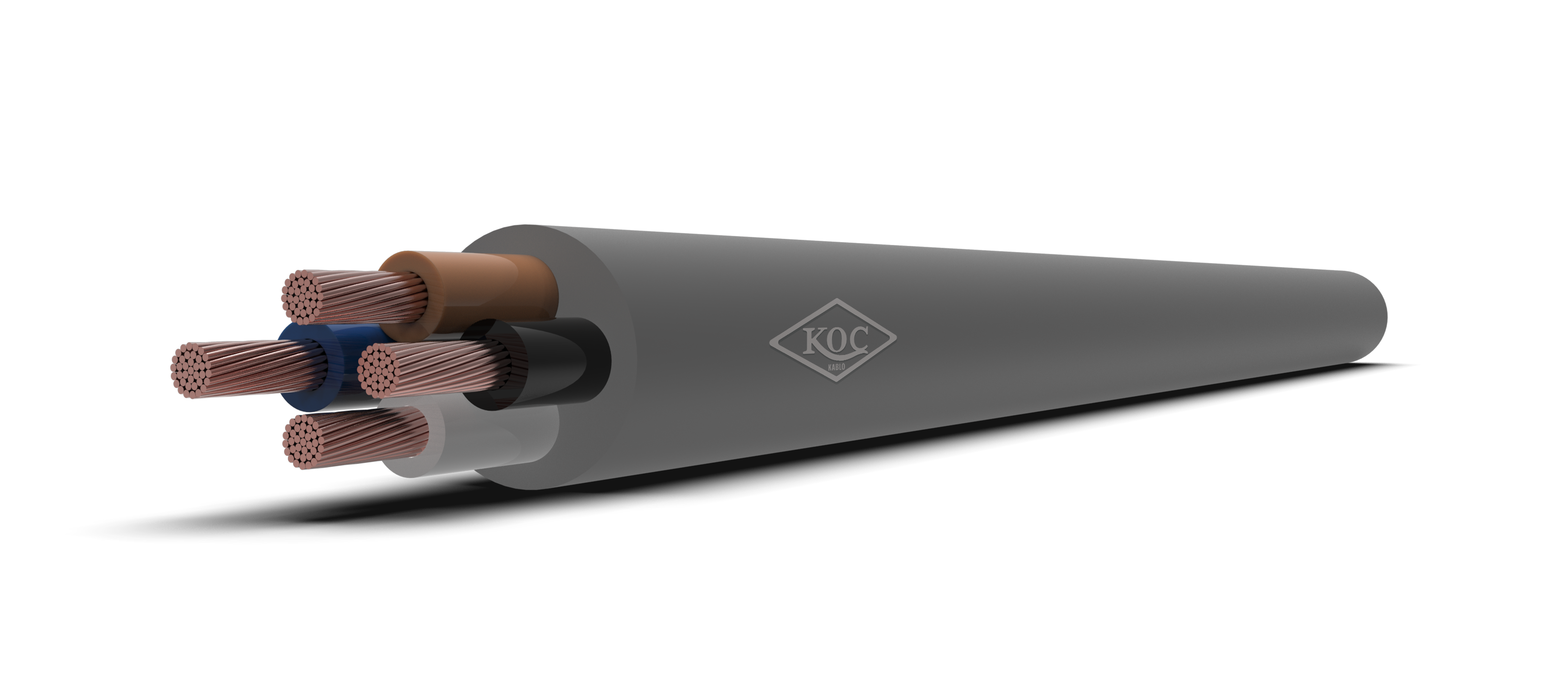

| NHXMH-F / 052XZ1-F | |
| STANDARD: | VDE 0250-214 |
| TECHNICAL DATA: | Max. Operating Temp.: 90 °C |
| Minimum Bending Radius: 6xD | |
| Max. Short Circuit Temp.: 250 °C | |
| Rated Voltage: 300/500 V | |
| CONSTRUCTION: | 1. Flexible Copper Conductor |
| 2. Cross Linkable Polyethylene (XLPE) | |
| 3. Halogen Free Flame Retardant (HFFR) Outer Sheath |
APPLICATION
It is a suitable type of cable for use in electrical household appliances (such as refrigerators, etc.) under low mechanical forces and in humid or wet conditions. It prevents flame propagation and reduces the formation of dense smoke in case of fire, ensuring both life and property safety. Due to its features of not creating high smoke density and not propagating flames during a fire, this cable is preferred in areas where fire safety is critically important, such as refineries, hotels, schools, tunnels, high-rise buildings, hospitals, data processing centers, and busy business centers.
| Nominal Cross Section (mm²) | Overall Diameter (mm) | Net Weight (kg/km) Aprox. | Standard Delivery Length (m) | Conductor DC Resistance at 20˚C (ohm/km) | Current Carrying Capacity in Conduit | Current Carrying Capacity in Air |
|---|---|---|---|---|---|---|
| 2x0,75 | 6.1 | 55 | 100 | 26 | 6 | 6 |
| 2x1 | 6.4 | 63 | 100 | 19.5 | 10 | 10 |
| 2x1,5 | 7.2 | 81 | 100 | 13.3 | 16 | 16 |
| 2x2,5 | 8.9 | 127 | 100 | 7.98 | 25 | 25 |
| 2x4 | 10.2 | 174 | 100 | 4.95 | 34 | 34 |
| 3G 0,75 | 6.5 | 63 | 100 | 26 | 6 | 6 |
| 3G 1 | 6.8 | 74 | 100 | 19.5 | 10 | 10 |
| 3G 1,5 | 7.9 | 100 | 100 | 13.3 | 16 | 16 |
| 3G 2,5 | 9.7 | 156 | 100 | 7.98 | 25 | 25 |
| 3G 4 | 11.1 | 220 | 100 | 4.95 | 34 | 34 |
| 4x0,75 | 7.3 | 81 | 100 | 26 | 6 | 6 |
| 4x1 | 7.7 | 97 | 100 | 19.5 | 10 | 10 |
| 4x1,5 | 8.8 | 126 | 100 | 13.3 | 16 | 16 |
| 4x2,5 | 10.6 | 193 | 100 | 7.98 | 25 | 25 |
| 4x4 | 12.1 | 272 | 100 | 4.95 | 34 | 34 |
| 5G 0,75 | 7.9 | 99 | 100 | 26 | 6 | 6 |
| 5G 1 | 8.4 | 117 | 100 | 19.5 | 10 | 10 |
| 5G 1,5 | 9.8 | 160 | 100 | 13.3 | 16 | 16 |
| 5G 2,5 | 11.8 | 242 | 100 | 7.98 | 25 | 25 |
| 5G 4 | 13.7 | 344 | 100 | 4.95 | 34 | 34 |
