| AAC | |
| STANDARTLAR: | TS EN 50182, TEDAŞ-MYD 96/014 |

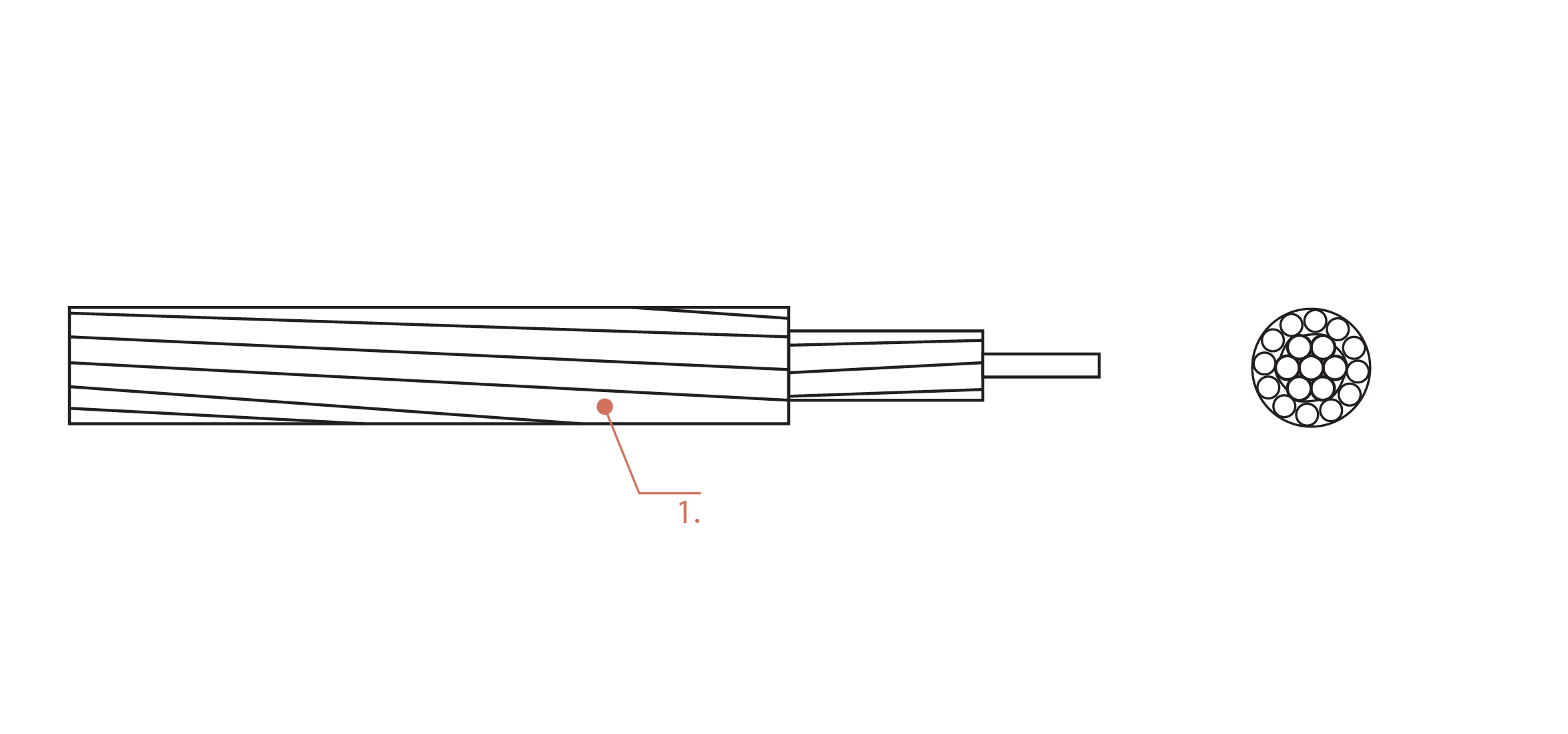

| YAPISI: | Bare Aluminum Stranded Conductor |
APPLICATION
Areas unsuitable for underground cable transmission, open areas where underground cable transmission costs are high, and low-voltage overhead lines.
| Rated Value (mm²) | Canadian Standards (Type) | Canadian Standards (Cross Section) | Cross Section Complete Conductor (mm²) | Copper Equivalent (mm²) | Number of Wires | Wire Diameter | Complete Conductor Diameter | Rated Breaking Load (kg) | DC. Resistance at 20°C (ohm/km) | Unit Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|---|---|
| 21 | Rose | 4 | 21.14 | 13.3 | 7 | 1.96 | 5.88 | 416 | 1.3558 | 57.8 |
| 27 | Lily | 3 | 26.6 | 16.73 | 7 | 2.2 | 6.6 | 514 | 1.0776 | 72.8 |
| 34 | İris | 2 | 33.53 | 21.09 | 7 | 2.47 | 7.41 | 637 | 0.8537 | 91.8 |
| 42 | Pansy | 1 | 42.49 | 26.72 | 7 | 2.78 | 8.34 | 777 | 0.6743 | 116.4 |
| 53 | Popy | 1/10 | 53.48 | 33.63 | 7 | 3.12 | 9.36 | 941 | 0.5354 | 146.4 |
| 67 | Aster | 2/0 | 67.14 | 42.22 | 7 | 3.5 | 10.5 | 1185 | 0.4254 | 184.4 |
| 85 | Phlox | 3/0 | 84.91 | 53.4 | 7 | 3.93 | 11.79 | 1435 | 0.3372 | 232.5 |
| 107 | Oxlip | 4/0 | 107.38 | 67.53 | 7 | 4.42 | 13.26 | 1814 | 0.2662 | 294 |
| 126 | Valerian | 250000 | 126.35 | 79.46 | 19 | 2.91 | 14.55 | 2261 | 0.2277 | 347.5 |
| 135 | Daisy | 266800 | 135.28 | 85.07 | 19 | 3.01 | 15.05 | 2421 | 0.2127 | 371.1 |
| 152 | Peony | 300000 | 151.81 | 95.47 | 19 | 3.19 | 15.85 | 2671 | 0.1896 | 417.2 |
