| YVZ4V, NYBY | |
| STANDARD: | YVZ4V TS IEC 60502-1, NYBY VDE 0271 |
| TECHNICAL DATA: | Max. Operating Temp.: 70 °C |
| Minimum Bending Radius: 12xD | |
| Max. Short Circuit Temp.: 160°C (+≤ 5 sn) | |
| Test Voltage(AC): 3,5kV | |
| Stripping Temp. Min.: -5°C | |

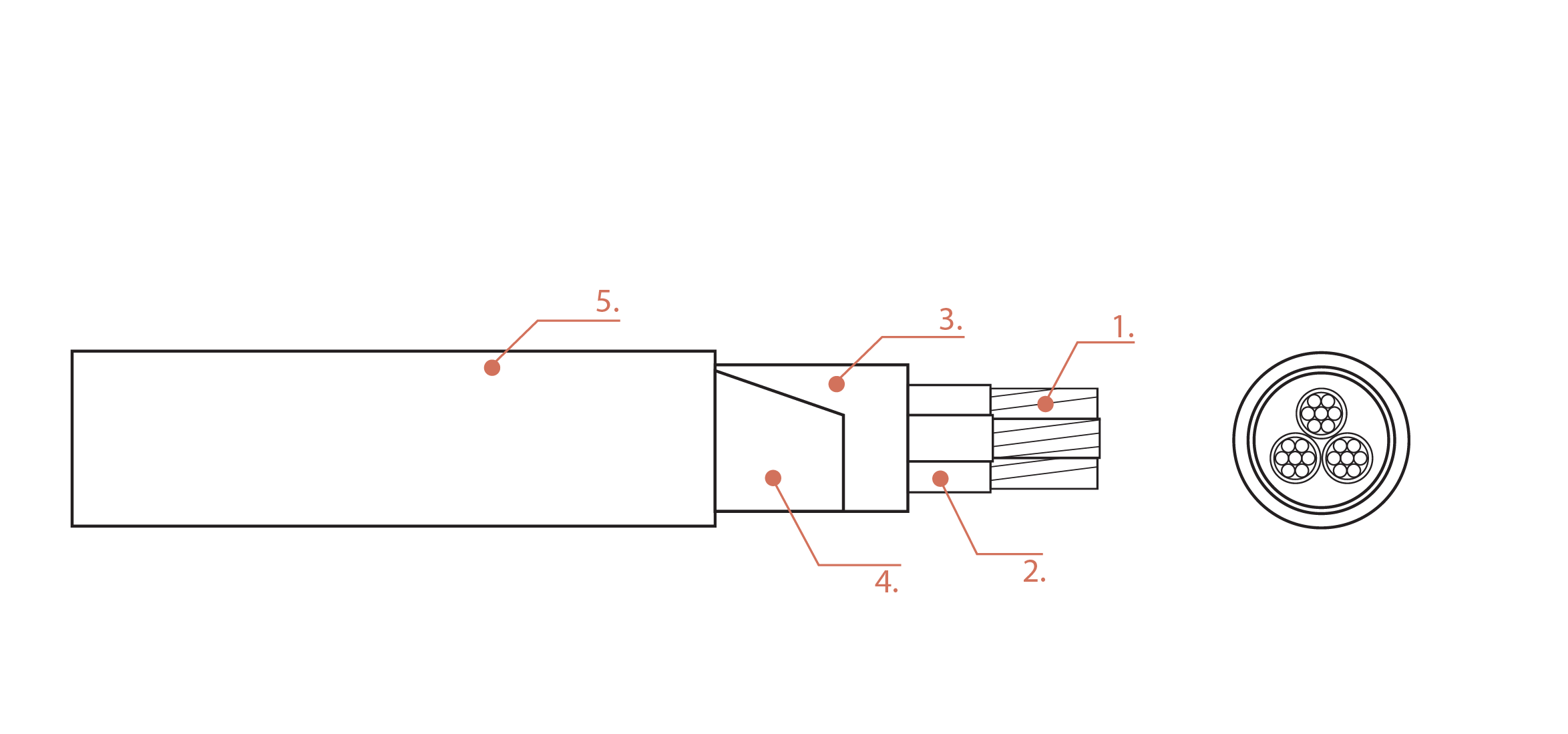

| CONSTRUCTION: | 1. Single or Multi-Stranded Copper Conductor |
| 2. PVC Insulation | |
| 3. PVC Filler | |
| 4. Galvanized Steel Tape | |
| 5. PVC Outer Sheath | |
APPLICATION
Used in internal and external locations with mechanical stress.
| Nominal Cross Section (mm²) | Overall Diameter (mm) Approx | Net Weight (kg/km) Approx | Standard Delivery Length (m) | Conductor DC Resistance at 20˚C (ohm/km) | Current Carrying Capacity in Air | Current Carrying Capacity in the Ground |
|---|---|---|---|---|---|---|
| 3 x 10 | 19.2 | 790 | 1000 | 1.83 | 60 | 79 |
| 3 x 16 | 20.7 | 1000 | 1000 | 1.15 | 80 | 102 |
| 3 x 25 | 24.6 | 1470 | 1000 | 0.727 | 108 | 133 |
| 3 x 35 | 27 | 1860 | 1000 | 0.524 | 132 | 160 |
| 3 x 50 | 30 | 2360 | 1000 | 0.387 | 160 | 190 |
| 3 x 70 | 34.7 | 3250 | 1000 | 0.268 | 202 | 234 |
| 3 x 95 | 41 | 4810 | 1000 | 0.193 | 249 | 280 |
| 3 x 120 | 44.6 | 5770 | 1000 | 0.153 | 289 | 319 |
| 3 x 150 | 48.9 | 6960 | 1000 | 0.124 | 329 | 357 |
| 3 x 185 | 53.9 | 8560 | 1000 | 0.0991 | 377 | 402 |
| 3 x 240 | 60.7 | 10830 | 1000 | 0.0754 | 443 | 463 |
| 3 x 300 | 66.9 | 13380 | 1000 | 0.0601 | 504 | 518 |
| 3 x 400 | 75.3 | 16780 | 500 | 0.047 | 577 | 579 |
| 3 x 16 + 10 | 22 | 1150 | 1000 | 1.15 | 80 | 102 |
| 3 x 25 + 16 | 25.7 | 1650 | 1000 | 0.727 | 108 | 133 |
| 3 x 35 + 16 | 27.7 | 2020 | 1000 | 0.524 | 132 | 160 |
| 3 x 50 + 25 | 31.4 | 2660 | 1000 | 0.387 | 160 | 190 |
| 3 x 70 + 35 | 37.4 | 4090 | 1000 | 0.268 | 202 | 234 |
| 3 x 95 + 50 | 42.6 | 5330 | 1000 | 0.193 | 249 | 280 |
| 3 x 120 + 70 | 46.9 | 6560 | 1000 | 0.153 | 289 | 319 |
| 3 x 150 + 70 | 50.3 | 7630 | 1000 | 0.124 | 329 | 357 |
| 3 x 185 + 95 | 56.5 | 9630 | 1000 | 0.0991 | 377 | 402 |
| 3 x 240 + 120 | 62.6 | 11980 | 1000 | 0.0754 | 443 | 463 |
| 3 x 300 + 150 | 69 | 14790 | 500 | 0.0601 | 504 | 518 |
| 4 x 10 | 20.7 | 950 | 1000 | 1.83 | 60 | 79 |
| 4 x 16 | 22.4 | 1220 | 1000 | 1.15 | 80 | 102 |
| 4 x 25 | 27 | 1820 | 1000 | 0.727 | 108 | 133 |
| 4 x 35 | 29.4 | 2300 | 1000 | 0.524 | 132 | 160 |
| 4 x 50 | 33.3 | 2990 | 1000 | 0.387 | 160 | 190 |
| 4 x 70 | 39.5 | 4570 | 1000 | 0.268 | 202 | 234 |
| 4 x 95 | 45.7 | 6070 | 1000 | 0.193 | 249 | 280 |
| 4 x 120 | 49.3 | 7240 | 1000 | 0.153 | 289 | 319 |
| 4 x 150 | 53.8 | 8710 | 1000 | 0.124 | 329 | 357 |
| 4 x 185 | 59.9 | 10850 | 1000 | 0.0991 | 377 | 402 |
| 4 x 240 | 67.1 | 13670 | 1000 | 0.0754 | 443 | 463 |
| 4 x 300 | 74.4 | 17030 | 500 | 0.0601 | 504 | 518 |
| 4 x 400 | 84.9 | 22380 | 500 | 0.047 | 577 | 579 |
| 4 x 16 + 10 | 23.9 | 1390 | 1000 | 1.15 | 80 | 102 |
| 4 x 25 + 16 | 28.4 | 2040 | 1000 | 0.727 | 108 | 133 |
| 4 x 35 + 16 | 30.7 | 2520 | 1000 | 0.524 | 132 | 160 |
| 4 x 50 + 25 | 36.5 | 3790 | 1000 | 0.387 | 160 | 190 |
| 4 x 70 + 35 | 41.3 | 5040 | 1000 | 0.268 | 202 | 234 |
| 4 x 95 + 50 | 47.6 | 6670 | 1000 | 0.193 | 249 | 280 |
| 4 x 120 + 70 | 52 | 8130 | 1000 | 0.153 | 289 | 319 |
| 4 x 150 + 70 | 56.5 | 9630 | 1000 | 0.124 | 329 | 357 |
| 4 x 185 + 95 | 62.9 | 12040 | 1000 | 0.0991 | 377 | 402 |
| 4 x 240 + 120 | 70.1 | 15080 | 500 | 0.0754 | 443 | 463 |
| 4 x 300 + 150 | 77.7 | 18760 | 500 | 0.0601 | 504 | 518 |
| 5 x 10 | 22.4 | 1120 | 1000 | 1.83 | 60 | 79 |
| 5 x 16 | 24.3 | 1460 | 1000 | 1.15 | 80 | 102 |
| 5 x 25 | 29.3 | 2180 | 1000 | 0.727 | 108 | 133 |
| 5 x 35 | 32.8 | 2850 | 1000 | 0.524 | 132 | 160 |
| 5 x 50 | 37.7 | 4090 | 1000 | 0.387 | 160 | 190 |
| 5 x 70 | 43.3 | 5530 | 1000 | 0.268 | 202 | 234 |
| 5 x 95 | 50 | 7350 | 1000 | 0.193 | 249 | 280 |
| 5 x 120 | 54.2 | 8810 | 1000 | 0.153 | 289 | 319 |
| 5 x 150 | 59.6 | 10700 | 1000 | 0.124 | 329 | 357 |
| 5 x 185 | 66 | 13260 | 500 | 0.0991 | 377 | 402 |
| 5 x 240 | 74.3 | 16820 | 500 | 0.0754 | 443 | 463 |
