| YVC7V-U, YVC7V-R (TSE), NYCY (VDE) | |
| STANDARD: | TS IEC 60502-1 , VDE 0276 |
| TECHNICAL DATA: | Max. Operating Temp.: 70 °C |
| Minimum Bending Radius: 12xD | |
| Max. Short Circuit Temp: 160°C for ≤ 300 mm² , 140°C for >300 mm² | |

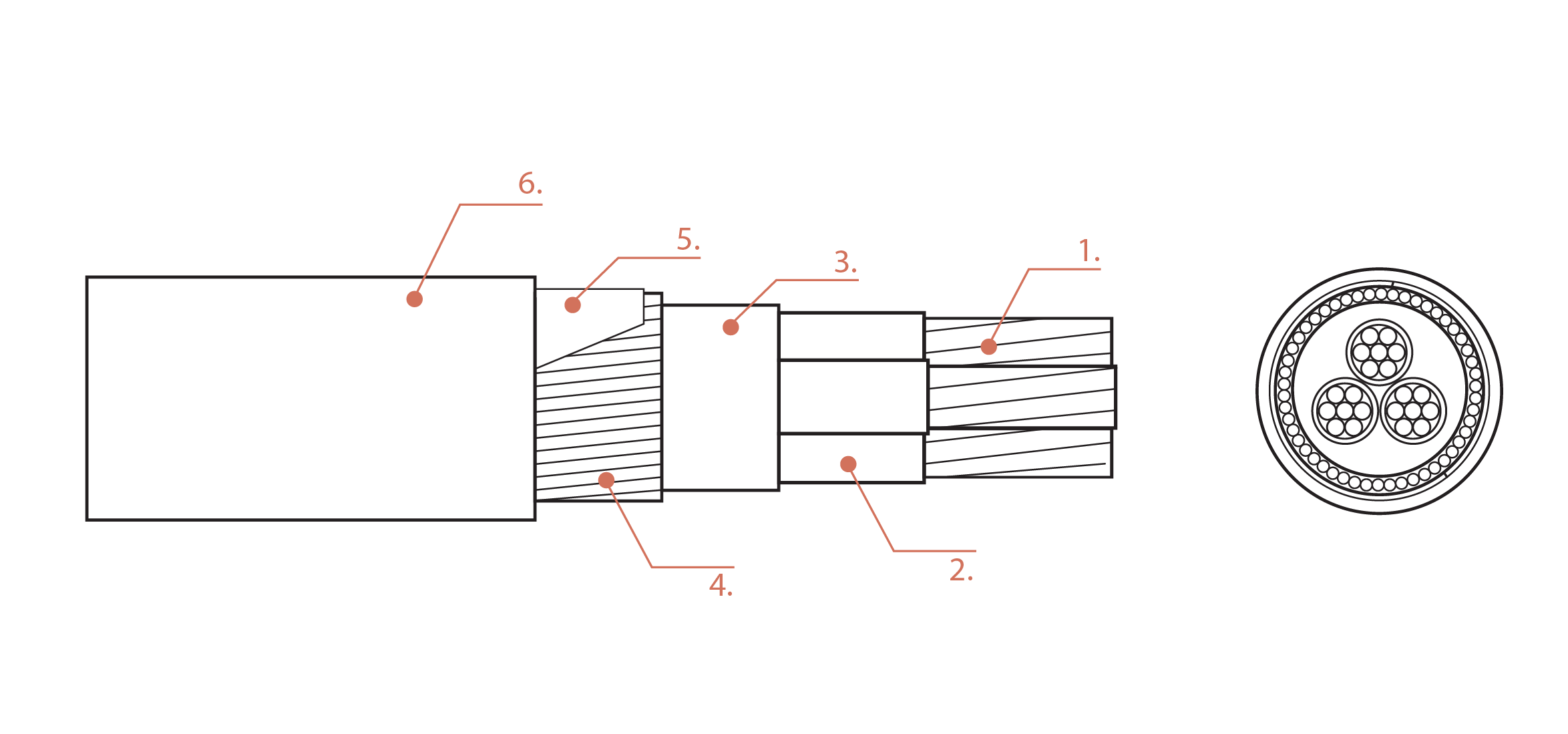

| CONSTRUCTION: | 1. Copper conductor |
| 2. PVC Insulation | |
| 3. PVC Filler | |
| 4. Copper Concentric Shield | |
| 5. Copper Holding Tape | |
| 6. PVC Outer Sheath | |
APPLICATION
Typically used in residential areas and underground installations. The concentric conductor above the cables prevents energy damage to the environment by triggering breakers or fuses in case of mechanical impact.
| Nominal Cross Section (mm²) | Overall Diameter (mm) Approx | Net Weight (kg/km) Approx | Conductor DC Resistance at 20˚C (ohm/km) | Current Carrying Capacity in the Ground | Current Carrying Capacity in Air |
|---|---|---|---|---|---|
| 3x1.5/1.5 re | 13 | 230 | 12.1 | 27 | 19 |
| 3x2.5/2.5 re | 14 | 300 | 7.41 | 36 | 25 |
| 3x4/4 re | 16 | 400 | 4.61 | 47 | 34 |
| 3x6/6 re | 17 | 500 | 3.08 | 59 | 43 |
| 3x10/10 rm | 19 | 700 | 1.83 | 79 | 59 |
| 3x16/16 rm | 22 | 1000 | 1.15 | 102 | 79 |
| 3x25/16 rm | 26 | 1400 | 0.727 | 133 | 100 |
| 3x35/16 rm | 29 | 1800 | 0.524 | 159 | 125 |
| 3x50/25 rm | 32 | 2350 | 0.387 | 188 | 153 |
| 3x70/35 rm | 37 | 3200 | 0.268 | 232 | 195 |
| 3x95/50 rm | 42 | 4300 | 0.193 | 280 | 238 |
| 3x120/70 rm | 45 | 5300 | 0.153 | 318 | 275 |
| 3x150/70 rm | 50 | 6400 | 0.124 | 359 | 320 |
| 3x185/95 rm | 55 | 8050 | 0.0991 | 406 | 364 |
| 3x240/120 rm | 63 | 10500 | 0.0754 | 473 | 430 |
| 3x300/150 rm | 69 | 13100 | 0.0601 | 535 | 510 |
| 3x400/185 rm | 77 | 16400 | 0.047 | 613 | 595 |
