| N2XCH FE 180 | |
| STANDARD: | TS HD 604 S1 , DIN – VDE 0276-604 |
| TECHNICAL DATA: | Max. Operating Temp.: 90 °C |
| Minimum Bending Radius: 12xD | |
| Max. Short Circuit Temp.: 250 °C | |
| Rated Voltage: 0,6/1 kV | |

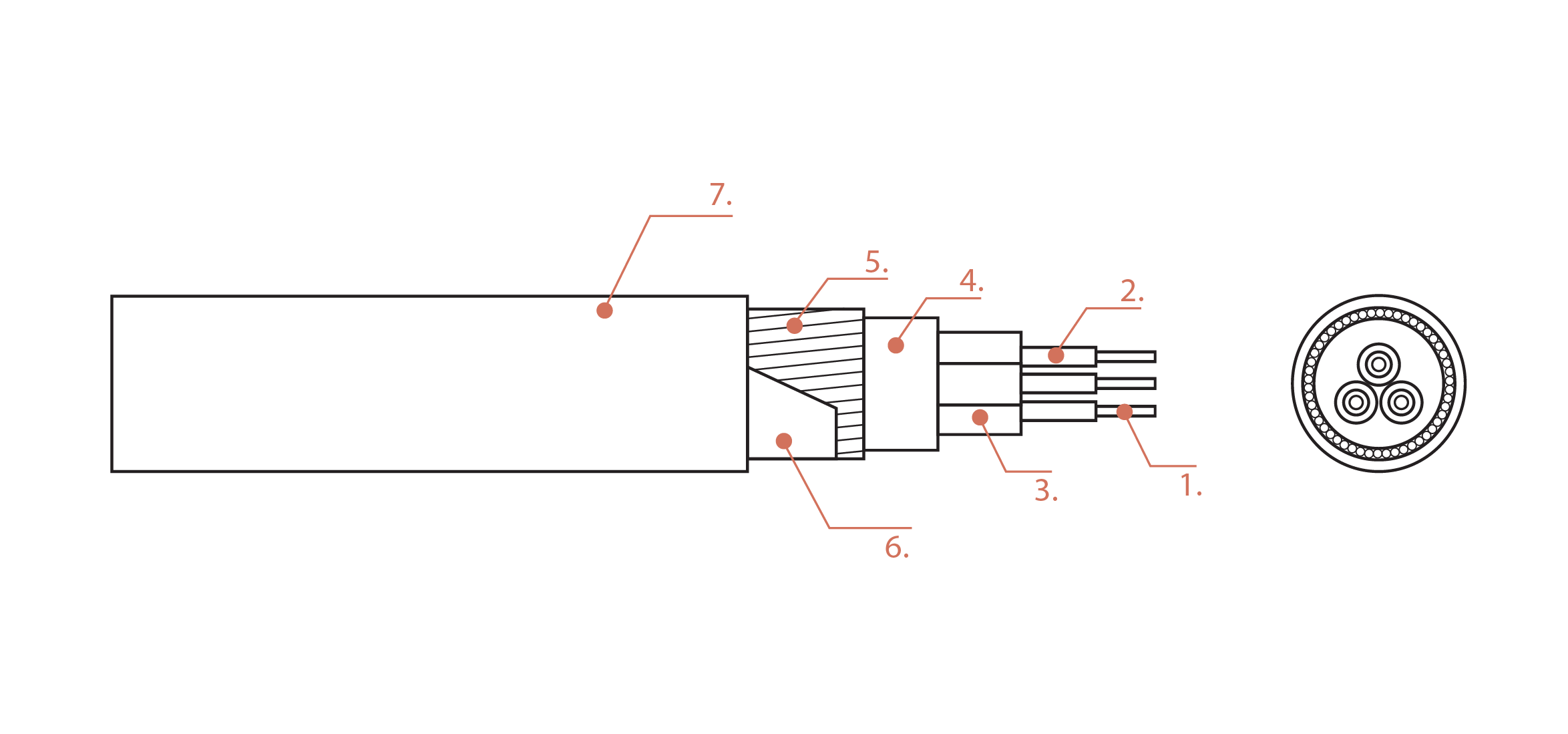

| CONSTRUCTION: | 1. Copper Conductor |
| 2. Mika Tape | |
| 3. XLPE Insulation | |
| 4. HFFR Filler | |
| 5. Copper Contentric Screen | |
| 6. Copper Holding Tape | |
| 7. HFFR Outer Sheath | |
APPLICATION
Mining shafts, refineries, hotels, schools, high-rise buildings, hospitals, tunnels, power plants, data centers, and workplaces with high human density and fire-sensitive areas.
| Nominal Cross Section (mm²) | Overall Diameter (mm) Approx | Net Weight (kg/km) Aprox. | Conductor DC Resistance at 20˚C (ohm/km) | Current Carrying Capacity in Air |
|---|---|---|---|---|
| 3x1.5/1.5 re | 11.5 | 180 | 12.1 | 23 |
| 3x2.5/2.5 re | 12.5 | 230 | 7.41 | 32 |
| 3x4/4 re | 13.5 | 280 | 4.61 | 42 |
| 3x6/6 re | 14.5 | 360 | 3.08 | 53 |
| 3x10/10 rm | 17.5 | 550 | 1.83 | 73 |
| 3x16/10 rm | 19.5 | 750 | 1.15 | 98 |
| 3x25/16 rm | 22 | 1050 | 0.727 | 126 |
| 3x35/16 rm | 24.5 | 1400 | 0.524 | 156 |
| 3x50/25 rm | 27.5 | 1800 | 0.387 | 190 |
| 3x70/35 rm | 32 | 2550 | 0.268 | 245 |
| 3x95/50 rm | 35.5 | 3400 | 0.193 | 297 |
| 3x120/70 rm | 40 | 4350 | 0.153 | 346 |
| 3x150/70 rm | 45 | 5250 | 0.124 | 398 |
| 3x185/95 rm | 49.5 | 6600 | 0.0991 | 455 |
| 3x240/120 rm | 54.5 | 8400 | 0.0754 | 535 |
| 4x1.5/1.5 re | 12.5 | 210 | 12.1 | 23 |
| 4x2.5/2.5 re | 13.5 | 260 | 7.41 | 32 |
| 4x4/4 re | 14.5 | 330 | 4.61 | 42 |
| 4x6/6 re | 15.5 | 430 | 3.08 | 53 |
| 4x10/10 rm | 19 | 650 | 1.83 | 73 |
| 4x16/10 rm | 21 | 920 | 1.15 | 98 |
| 4x25/16 rm | 25 | 1320 | 0.727 | 126 |
| 4x35/16 rm | 27 | 1800 | 0.524 | 156 |
| 4x50/25 rm | 31 | 2300 | 0.387 | 190 |
| 4x70/35 rm | 36 | 3300 | 0.268 | 245 |
| 4x95/50 rm | 40 | 4400 | 0.193 | 297 |
| 4x120/70 rm | 44 | 5500 | 0.153 | 346 |
| 4x150/70 rm | 49.5 | 6650 | 0.124 | 398 |
| 4x185/95 rm | 54.5 | 8400 | 0.0991 | 455 |
| 4x240/120 rm | 60.5 | 10700 | 0.0754 | 535 |
