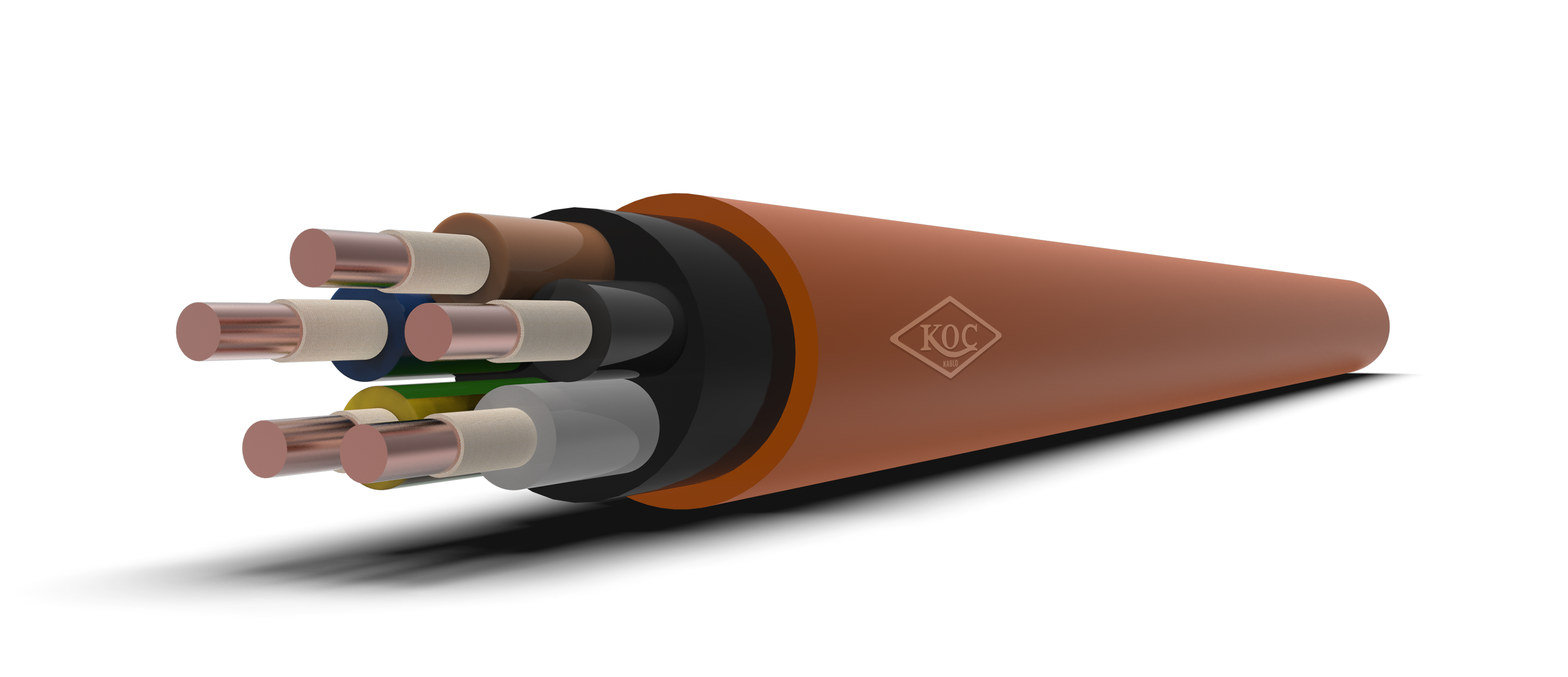

N2XH FE 180 | |
ESTÁNDARES: | TS HD 604 S1, VDE 0276 |
DATOS TÉCNICOS: | Temperatura Máxima de Funcionamiento: 90 °C |
Radio Mínimo de Curvatura: 15xD | |
Temp. Máx. de Cortocircuito: 250 °C | |
Voltaje Nominal: 0,6/1 kV | |
CONSTRUCCIÓN: | 1. Conductor de Cobre Sólido o Trenzado |
2. Cinta Mica | |
3. Polietileno Reticulado (XLPE) | |
4. Carga Retardante de Llama Halógena Libre (HFFR) | |
5. Forro Externo Retardante de Llama Halógena Libre (HFFR) |
APLICACIÓN
El cable de seguridad N2XH FE 180 es ideal para su uso en cualquier lugar donde preservar la vida humana y la propiedad durante un incendio sea una prioridad absoluta, especialmente en situaciones donde la conciencia de seguridad es de particular importancia. Se utiliza en áreas donde la seguridad contra incendios es de vital importancia, como instalaciones industriales, complejos residenciales, hoteles, aeropuertos, estaciones subterráneas, estaciones de tren, hospitales, centros comerciales, bancos, escuelas, edificios de varios pisos y centros de control de procesos. La estructura robusta de este cable garantiza una alta resistencia al fuego, proporcionando una solución segura para su uso en situaciones críticas de seguridad contra incendios.
N2XH FE 180 by kockablo on Sketchfab
Sección Nominal (mm²) | Diámetro Exterior (mm) Aproximado | Peso Neto (kg/km) Aproximado | Longitud de Envío Estándar (m) | Resistencia DC del Conductor a 20˚C (ohm/km) | Capacidad de Transporte de Corriente en el Conduit | Capacidad de Transporte de Corriente en el Aire |
---|---|---|---|---|---|---|
1x4 | 6.4 | 72 | 1000 | 4.61 | 66 - 55 | 56 - 44 |
1x6 | 6.9 | 86 | 1000 | 3.08 | 82 - 68 | 71 - 57 |
1x10 | 7.8 | 128 | 1000 | 1.83 | 109 - 90 | 96 - 77 |
1x16 | 8.8 | 199 | 1000 | 1.15 | 139 - 115 | 128 - 102 |
1x25 | 10.5 | 302 | 1000 | 0.727 | 179 - 149 | 173 - 139 |
1x35 | 11.7 | 395 | 1000 | 0.524 | 213 - 178 | 212 - 170 |
1x50 | 13.3 | 510 | 1000 | 0.387 | 251 - 211 | 258 - 208 |
1x70 | 15.2 | 745 | 1000 | 0.268 | 307 - 259 | 328 - 265 |
1x95 | 17.1 | 970 | 1000 | 0.193 | 366 - 310 | 404 - 326 |
1x120 | 19 | 1210 | 1000 | 0.153 | 416 - 352 | 471 - 381 |
1x150 | 20.9 | 1495 | 1000 | 0.124 | 465 - 396 | 541 - 438 |
1x185 | 23.3 | 1850 | 1000 | 0.0991 | 526 - 449 | 626 - 507 |
1x240 | 26.1 | 2370 | 500 | 0.0754 | 610 - 521 | 749 - 606 |
1x300 | 29 | 3000 | 500 | 0.0601 | 689 - 587 | 864 - 697 |
1x400 | 31 | 3750 | 500 | 0.047 | 788 - 669 | 1018 - 816 |
1x500 | 36 | 4930 | 1000 | 0.0366 | 889 - 748 | 1173 - 933 |
2x1,5 | 10.5 | 160 | 1000 | 12.1 | 37 | 26 |
2x2,5 | 12 | 200 | 1000 | 7.41 | 49 | 35 |
2x4 | 13 | 250 | 1000 | 4.61 | 64 | 46 |
2x6 | 14.5 | 300 | 1000 | 3.08 | 79 | 58 |
2x10 | 16 | 450 | 1000 | 1.83 | 106 | 79 |
2x16 | 18 | 600 | 1000 | 1.15 | 137 | 104 |
2x25 | 21 | 900 | 1000 | 0.727 | 176 | 141 |
2x35 | 23 | 1120 | 1000 | 0.524 | 213 | 174 |
2x50 | 27 | 1450 | 1000 | 0.387 | 252 | 212 |
2x70 | 29 | 2050 | 1000 | 0.268 | 310 | 268 |
2x95 | 34 | 2720 | 1000 | 0.193 | 361 | 331 |
2x120 | 37 | 3390 | 1000 | 0.153 | 412 | 385 |
2x150 | 41 | 4100 | 500 | 0.124 | 464 | 440 |
2x185 | 47 | 5250 | 500 | 0.0991 | 525 | 507 |
2x240 | 53 | 6700 | 500 | 0.0754 | 608 | 595 |
Sección Nominal (mm²) | Diámetro Exterior (mm) Aproximado | Peso Neto (kg/km) Aproximado | Longitud de Envío Estándar (m) | Resistencia DC del Conductor a 20˚C (ohm/km) | Capacidad de Transporte de Corriente en el Conduit | Capacidad de Transporte de Corriente en el Aire |
---|---|---|---|---|---|---|
3x1,5 | 11 | 180 | 1000 | 12.1 | 30 | 24 |
3x2,5 | 12.5 | 220 | 1000 | 7.41 | 40 | 32 |
3x4 | 13 | 290 | 1000 | 4.61 | 52 | 42 |
3x6 | 14.5 | 390 | 1000 | 3.08 | 64 | 53 |
3x10 | 17 | 540 | 1000 | 1.83 | 86 | 73 |
3x16 | 19 | 760 | 1000 | 1.15 | 111 | 96 |
3x25 | 23 | 1110 | 1000 | 0.727 | 143 | 130 |
3x35 | 24 | 1440 | 1000 | 0.524 | 173 | 160 |
3x50 | 27 | 1870 | 1000 | 0.387 | 205 | 195 |
3x70 | 31 | 2680 | 500 | 0.268 | 252 | 247 |
3x95 | 36 | 3554 | 500 | 0.193 | 303 | 305 |
3x120 | 40 | 4450 | 500 | 0.153 | 346 | 355 |
3x150 | 45 | 5500 | 500 | 0.124 | 390 | 407 |
3x185 | 50 | 6900 | 500 | 0.0991 | 441 | 469 |
3x240 | 57 | 8900 | 500 | 0.0754 | 511 | 551 |
3x300 | 62 | 10950 | 500 | 0.0601 | 580 | 638 |
3x400 | 68 | 13850 | 500 | 0.047 | 663 | 746 |
3x16+10 | 20 | 840 | 1000 | 1.15 - 1.83 | 111 | 96 |
3x25+16 | 24 | 1260 | 1000 | 0.727 - 1.15 | 143 | 130 |
3x35+16 | 25 | 1580 | 1000 | 0.524 - 1.15 | 173 | 160 |
3x50+25 | 29 | 2050 | 500 | 0.387 - 0.727 | 205 | 195 |
3x70+35 | 33 | 3100 | 500 | 0.268 - 0.524 | 252 | 247 |
3x95+50 | 37 | 4000 | 500 | 0.193 - 0.387 | 303 | 305 |
3x120+70 | 42 | 5100 | 500 | 0.153 - 0.268 | 346 | 355 |
3x150+70 | 46 | 6050 | 500 | 0.124 - 0.268 | 390 | 407 |
3x185+95 | 52 | 7750 | 500 | 0.0991 - 0.193 | 441 | 469 |
3x240+120 | 58 | 9900 | 500 | 0.0754 - 0.153 | 511 | 551 |
3x300+150 | 64 | 12300 | 500 | 0.0601 - 0.124 | 580 | 638 |
3x400+185 | 71 | 15450 | 500 | 0.047 - 0.0991 | 663 | 746 |
Sección Nominal (mm²) | Diámetro Exterior (mm) Aproximado | Peso Neto (kg/km) Aproximado | Longitud de Envío Estándar (m) | Resistencia DC del Conductor a 20˚C (ohm/km) | Capacidad de Transporte de Corriente en el Conduit | Capacidad de Transporte de Corriente en el Aire |
---|---|---|---|---|---|---|
4x1,5 | 12 | 200 | 1000 | 12.1 | 30 | 24 |
4x2,5 | 13 | 250 | 1000 | 7.41 | 40 | 32 |
4x4 | 14 | 300 | 1000 | 4.61 | 52 | 42 |
4x6 | 15.5 | 400 | 1000 | 3.08 | 64 | 53 |
4x10 | 17.5 | 580 | 1000 | 1.83 | 86 | 73 |
4x16 | 20 | 850 | 1000 | 1.15 | 111 | 96 |
4x25 | 24.5 | 1300 | 1000 | 0.727 | 143 | 130 |
4x35 | 26 | 1700 | 1000 | 0.524 | 173 | 160 |
4x50 | 30 | 2300 | 500 | 0.387 | 205 | 195 |
4x70 | 34 | 3200 | 500 | 0.268 | 252 | 247 |
4x95 | 38 | 4250 | 500 | 0.193 | 303 | 305 |
4x120 | 43 | 5400 | 500 | 0.153 | 346 | 355 |
4x150 | 48 | 6600 | 500 | 0.124 | 390 | 407 |
4x185 | 53 | 8200 | 500 | 0.0991 | 441 | 469 |
4x240 | 61 | 10600 | 500 | 0.0754 | 511 | 551 |
4x300 | 67 | 13200 | 500 | 0.0601 | 580 | 638 |
4x400 | 76 | 16900 | 500 | 0.047 | 663 | 746 |
5G 1,5 | 11.7 | 204 | 1000 | 12.1 | 30 | 24 |
5G 2,5 | 13 | 272 | 1000 | 7.41 | 40 | 32 |
5G 4 | 14.4 | 374 | 1000 | 4.61 | 52 | 42 |
5G 6 | 15.7 | 485 | 1000 | 3.08 | 64 | 53 |
5G 10 | 18.7 | 729 | 1000 | 1.83 | 86 | 73 |
5G 16 | 21.8 | 1082 | 1000 | 1.15 | 111 | 96 |
5G 25 | 25.6 | 1605 | 1000 | 0.727 | 143 | 130 |
5G 35 | 28.7 | 2139 | 1000 | 0.524 | 173 | 160 |
